SS,Straight,21/2″NPTx21/2″NPT

Description

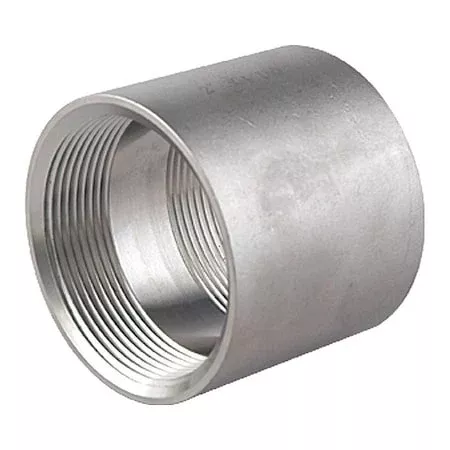

The ZORO SELECT – 40FC111N212 is a stainless steel coupling that connects two pipe/tube ends in-line in a straight-line configuration. Constructed from 304 stainless steel, Applications: air, natural gas, non-potable water, oil, potable water, and steam. It features female National Pipe Thread (NPT) connections on both ends with a nominal pipe size of 2 1/2 inches; Overall length: 72.9 mm; Conforms to ASTM A-351 material, ANSI B1.20.1 thread, MSS-SP-114 Class 150 standards. Maximum operating pressure: 300 psi.Key Features:

• – Material: 304 stainless steel
• – Coupling style with female NPT connections on both ends
• – Nominal pipe size: 2 1/2 inches
• – Thread size: 8 threads per inch on both sides
• – Maximum operating pressure: 300 psi
• – Compatible with pipe schedule 40
• – Overall length: 72.9 mm; Conforms to ASTM A-351 material, ANSI B1.20.1 thread, MSS-SP-114 Class 150 standards
• – Applications: air, natural gas, non-potable water, oil, potable water, and steam
• – No pre-applied thread sealant or included sealing components
• – Color: Silver
• – Lead content compliance: Compliant with applicable standards

• Ship Pack Height: 2.9
• Ship Pack Length: 3.6
• Ship Pack Width: 3.6
